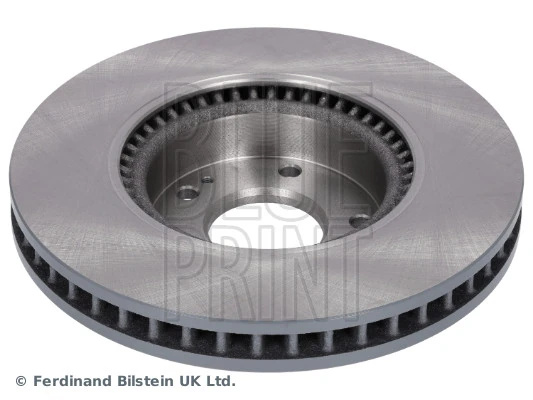

Disc frana punte fata Blue Print HYUNDAI i30 combi (GD) 2012-2017 - ADG043136

DISC FRANA BLUE PRINT - ADG043136

Caracteristici:

• Janta, numar gauri: 5
• Partea de montare: punte fata
• Grosime [mm]: 47
• Greutate [kg]: 8,32
• Tip disc frana: ventilat interior
• Grosime disc frana [mm]: 28
• Grosime minima [mm]: 26,4
• Diametru exterior [mm]: 300
• Diametru de centrare [mm]: 69
• Asezare gauri O [mm]: 114
• Suprafata: acoperit (cu un strat protector)
• Numarul gaurilor de fixare: 2

Masini compatibile:

HYUNDAI
• i30 (GD) (2011-2020)
• SONATA VI (YF) (2009-2015)
• ix35 (LM, EL, ELH) (2009-2022)
• i30 combi (FD) (2007-2012)
• i40 I CW (VF) (2011-2019)
• SONATA V (NF) (2005-2010)
• i30 (FD) (2007-2011)
• TUCSON (JM) (2004-2015)
• i40 I (VF) (2012-2019)
• VELOSTER (FS) (2012-2017)
• i30 combi (GD) (2012-2017)
• GRANDEUR (HG) (2011-2016)
• i30 cupe (2013-2020)
• CRETA (2016-2021)
• GRANDEUR (TG) (2005-2011)
• i30 Kombi Van (GDE, GD) (2015-2020)
• i30 Hatchback Van (GDE) (2015-2020)
• i40 I Kombi Van (VF) (2015-2019)
• ix35 Van (2009-2015)
• TUCSON Autoutilitara/SUV (JM) (2004-2010)

KIA
• SPORTAGE III (SL) (2010-2016)
• CEE'D (JD) (2012-2018)
• OPTIMA (FSGDS6B) (2010-2015)
• CEE'D Sportswagon (JD) (2012-2018)
• PRO CEE'D (JD) (2013-2018)
• CARENS IV (2013-2023)
• SOUL II (PS) (2014-2018)
• OPTIMA (JF) (2015-2020)
• OPTIMA Sportswagon (JF) (2016-2019)
• SPORTAGE IV (QL, QLE) (2015-2022)
• CEE'D hatchback (ED) (2011-2012)
• CEE'D SW (ED) (2011-2012)
• CEE'D Combi Van (JD) (2012-2018)
• PRO CEE'D Hatchback Van (JD) (2012-2018)
• CARENS IV Van (A4) (2015-2016)

Coduri echivalente:
0AMS: RKK-087, RKK-312
4X4 ESTANFI: EST-60-0H-H15C, EST-60-0H-H23C
Abs.: 17676, 17948
A.Z. Meisterteile: AZMT-44-024-1322, AZMT-44-024-2268
ABAKUS: 231-03-124, 231-03-174
ABE: C30522ABE, C30531ABE
ABTEX: BD1655V
ACDelco: 19374515
ACKOJA: A52-2511, A52-2520, A52-80013
ADVICS-SEA: R6F1172, R6F808
AISIN: R6F808S
AKEBONO: BN-0141, BN-0141E, BN-0249, BN-0249E
AKRON-MALO: 1110570, 1110685
ALLIED NIPPON: AND6161, AND6172
AP: 20076V, 25230, 25230V, 25230X, 25231, 25231V, 25232, 25232V, 25232X
AP XENERGY: X602609, X602953
AP-SA: H2029V, H2030V
APEC: DSK2604, DSK2780, SDK6295, SDK6305
APlus: 61369AP, 61689AP
ASAM AUTOMOTIVE: 74953
ASHIKA: 60-0H-H15, 60-0H-H15C, 60-0H-H23, 60-0H-H23C, 60-0H-H42C
ASHUKI by Palidium: Y089-25, Y089-70
ASUKI: ADR-H934
ATE: 24.0128-0234.1, 24.0128-0256.1, 24.0128-0280.1, 24.0328-0256.1
AUTO-SPEED PARTS: 290BK00439, 290BK00502
AYD OE - Excellence: 10-50258, 10-50578
Autostar Germany: 1414161
BENDIX: 521293
BENDIX Braking: BDS1064HC, BDS1417
BORG & BECK: BBD4523, BBD4702
BOSCH: 0986479537, 0986479595, 0986479C51, 0986479S14, 0986479U43, 0986AB5815, F005X14060
BRAXIS: AE0152, AE0274
Break: BR451VA100
BRECO: BS8840, BS8841, BS8842, BV7984, BV8840, BV8841, BV8842
BREMBO: 09.A532.10, 09.A532.11, 09.A532.1X, 09.A532.20, 09.A532.21, 09.A532.2E, 09.A532.2X, 09.A807.10, 09.A807.11, 09.D210.11
BREMSI: CD7630V, CD7795V
BSF: 11780V, 11781V
BSG: BSG40-210-028
Brake ENGINEERING: DI956806, DI956951
Burig: B010065, B010368
BOLK: BOL-I010322, BOL-J080051
CAR: 142.1383, 142.1483, 142.1837, HPD1383
CHAMPION: 562755CH
CIDAK: CBD2319, CBD2323
CIFAM: 800-1162C, 800-925C
COMLINE: ADC1089V, ADC1092V, AND6161, AND6172
CWORKS: C210R2025, C210R2079
DACO Germany: 601302, 601323
DANAHER: DR11790, DR13142, DR13260
DANBLOCK: DB521293
DAVID VASCO: T6108
DBA Australia: DBA2456E, DBA2480
DEEVO: BD21040
DELPHI: BG4011, BG4011C-18B1, BG4251, BG4251C, BG4251C-18B1
DENCKERMANN: B130525, B130638
DIAMAX: N08863, N7039
DJ PARTS: BD1367, BD2119, BD2701
DODA: 1070100011
DON: PCD10422
DYNAMATRIX: DBD1630, DBD1795
Dr!ve+: DP1010.11.0460, DP1010.11.0594
E.T.F.: 19-1107, 19-2144
EGT: 410526EGT, 410526cEGT, 410734EGT, 410734cEGT
EUROBRAKE: 5815203422, 5815203433, 5815313422, 5815313433
EUROREPAR: 1618889980, 1636916980, 1642757080, 1667868980, 1674254380, 1684253280, 1686324180, 1686721880, 1687776580
FEBI BILSTEIN: 31317
FENOX: TB219330, TB219331
FERODO: DDF1630, DDF1630C, DDF1630C-D, DDF1630X, DDF1795, DDF1795-1, DDF1795C, DDF1795C-1-D
FI.BA: FBD250
FIT: FR0458V, FR0653V
FREMAX: BD-0586
FRIGAIR: DC28.102
FTE: 9071031, 9071250, 9081027, 9081215, BS7203, BS7203B, BS7315, BS7315B
Fahren: FBD6295
G.U.D.: GDB128234, GDB128256
GALFER: B1.G228-0234.1, B1.G228-0256.1
GAMA-SA: GM20112, GM20241
GH: GH-403480
GIRLING: 6049575, 6061085
GUTTMANN: BD5142
HART: 231494, 231748, 257990
HELLA: 8DD355114-481, 8DD355114-511, 8DD355118-421, 8DD355128-831
HELLA PAGID: 8DD355114-481, 8DD355114-511, 8DD355128-831
HERTH+BUSS JAKOPARTS: J3300511, J3300536, J3300555
HYUNDAI: 51712-1M500, 51712-2L500, 51712-2Y000, 51712-3K110, 51712-3K150, 51712-3K160, 51712-3V000, 51712-A0000, 51712-A6600
Hi-Q: SD1005, SD1005B, SD1069
IAP QUALITY PARTS: 709-07002, 709-21103
IBERIS: IB151103
ICER: 78BD0580-2, 78BD0586-2
IOTO: 10206-30301, 10208-30301
J&S Automotive: VBD4088, VBD4092
JAPANPARTS: DI-H15, DI-H15C, DI-H23, DI-H23C, DI-H42C, DIH23JM, DIH42JM
JAPKO: 60H15, 60H15C, 60H23, 60H23C, 60H42C
JP GROUP: 3563103000, 3663101000
JPN: 30H0536-JPN
JURATEK: HYU134
JURID: 562550JC, 562550JC-1, 562755JC, 562755JC-1
KAGER: 37-1215
KAISHIN: CBR441, CBR464
KAMOKA: 1031070, 103289
KAVO PARTS: BR-3258, BR-3258-C, BR-3287-C, BR-4252-C
KAWE: 6121710, 6190410, 698810
KEY PARTS: KBD4702
KIA: 51712-0Z000, 51712-1M500, 51712-2L500, 51712-2Y000, 51712-3K110, 51712-3K160, 51712-3Q000, 51712-A6600, 51712-E4000, S517123K160
KLAXCAR FRANCE: 25482z, 25632z
KRAFT AUTOMOTIVE: 6044712
KRAFTVOLL GERMANY: 07040062
LPR: H2029V, H2029VR, H2030V
LPR-CN: H2029V, H2030V
LPR-SA: H2029V, H2030V
LYNXAUTO: BN-1055, BN-1544
MAGNETI MARELLI: 360406108800, 360406108801, 360406115100, 360406115300, 360406115301, 360406141002, 360406167001, 3607-arată telefon-, 3607-arată telefon-, 361302040546, 361302040753
MANDO: MBC030186, MBC030190, MBC030197, MBC030266
MAPCO: 25249, 47249, 47257, 47938
MASTER-SPORT GERMANY: 202802560, 202802560P, 202852560, 202852560P, 24-0128-0234-1-SET-MS, 24012802341-PCS-MS, 24012802341-PCS-MSP, 24012802341-SET-MSP, 24012802341PR-PCS-MS, 24012802341PR-PCS-MSP, 24012802561-PCS-MS, 24012802561-PCS-MSP, 24012802561-SET-MS, 24012802561-SET-MSP, 24012802561PR-PCS-MS, 24012802561PR-PCS-MSP, 24012802561PR-SET-MS
MAXGEAR: 19-1338, 19-1338SPORT, 19-1863, 19-1863MAX, 19-1863SPORT
MAXTECH: 865262, 865271, 873583
MDR: MFD-2H15, MFD-2H23
MEC-DIESEL: 577860
METELLI: 23-0925C, 23-1162C
METZGER: 6110155, 6110843
MEYLE: 37-155210030, 37-155210030/PD, 37-155210032, 37-155210032/PD
MGA: D1853, D1874, D2175
MILES: K000222, K000899, K200222, K200899
MINTEX: MDC2043, MDC2045, MDC2395, MDC82043C
MOBILAND: 416101451
MOTAQUIP: LVBD1294Z, LVBD1529
MOTRIO: 8550502061, 8550502089
NAPA: NBD5161, NBD5264, PBD8542
NECTO: WN1519
NEW BLOX: NB020990V05F
NIPPARTS: J3300532, N3300533, N3300533P
NISSHINBO: ND6011K, ND6030K
NK: 203422, 203433, 203441, 313422, 313433
NPS: H330I26, H330I34
National: NBD1544, NBD1753
NiBK: RN1348, RN1348DSET, RN1547
OPEN PARTS: BDA2477.20, BDR2351.20, BDR2477.20
OPTIMAL: BS-8564, BS-8564HC, BS-8788, BS-8788HC
OREX: 145041
OSSCA: 32713, 70679
Omnicraft: 2134111, QBRR701
Oyodo: 30H0536-OYO
PAGID: 54662, 54665
PATRON: PBD4957, PBD7024
PEMEBLA: BNXBDS1064HC, BNXBDS1417, JAPDI-0566, JAPDI-H23C
PILENGA: V1852, V538, V706
PROCODIS FRANCE: JDF8000
PROFIT: 5010-1630, 5010-1795
PROTECHNIC: PRD2711, PRD2726
Premium Parts: BD2119, BD2701
Professional Parts: 51140829
ProfiPower: 3B1035, 3B1136
QH Talbros: BDC5757
QUARO: QD5425, QD5425HC, QD7527, QD7527HC
QUINTON HAZELL: BDC5757, BDC5855, MBD5757, MBD5855
R BRAKE: 78RBD20580, 78RBD20586
RAICAM: RD00526, RD00537
RAP BRAKES: R-D0163, R-D0217
RECOFICIAL: 78BD0580, 80-1290, 80-2490
RED-LINE: 26HY058
REMSA: 61217.10, 61904.10, 6988.10
REMY: RAD1101C, RAD1372C
RIDEX: 3405B2034, 82B0251, 82B0251P, 82B0752, 82B1808
ROADHOUSE: 61217.10, 61904.10, 6988.10
ROTINGER: RT20374, RT20374-GL, RT20374-GLT3, RT20374-GLT5, RT20374-GLT6, RT20374-GLT9, RT20829, RT20829-GL, RT20829-GLT3, RT20829-GLT5, RT20829-GLT6, RT20829-GLT9
SAKURA: 604-05-4712, 6044615
SAMKO: H2029V, H2029VR, H2030V
SAMKO-SA: H2029V, H2030V
SASIC: 6106224
SB: BR11120PSET, BR11120T, BR11128T
SIGMAUTO: DBB630V, DBB795V
SKF: VKBD80019V1, VKBD80236V1
STARLINE: PB20374, PB20374C
STELLOX: 6020-1083V-SX, 6020-1083VK-SX, 6020-3421VK-SX, 6020-9320-SX, 6020-9320K-SX
SWAG: 90931317
Stark: SKBD-0020256, SKBD-0022902, SKBK-10992037
TEXTAR: 92166200, 92166500, 92166503, 92166505, 92243503
TOMEX Brakes: TX72-47, TX73-31
TOPRAN: 820766
TRADEX FRANCE: DSQ-T65, TBD1066
TREVI AUTOMOTIVE: BD1230
TRIALLI: DF073313, DF0844s
TRISCAN: 812043141C, 812043152C
TRUSTING: DF1018, DF1282
TRW: DF4957S, DF6108S
VAICO: V52-80013, V52-80020
VALEO: 196031, 197174, 197533, 497007, 672583, 672764
VARTEX GERMANY: 42-158564
VILLAR: 628.2560, 628.2561, 628.2632, 628.3083
WAGNER: WGR1630P-1-D
WOKING: D61217.10, D61904.10, D6988.10
ZEKKERT: BS-5274, BS-5274B, BS-5667
ZIMMERMANN: 285.3513.20, 285.3513.52, 285.3518.20, 285.3518.52, 285.3518.53
ZentParts: Z05957, Z05986
sbs: 1815203422, 1815203433, 1815313422, 1815313433
